Advance Marine Products

Advance Marine Gearbox is a ship non-main propulsion gearbox, the internal structure of this type of gearbox can realize the demand of different working conditions through reasonable design, it is often applied to drive hydraulic pump, generator, mud pump, etc., and can be configured with clutch, speed increase, deceleration, braking, multi-PTO output according to It can be configured with clutch, speed increase, deceleration, braking, multi-PTO output and other functions according to user requirements. Advance Marine Gearboxes are widely used for power transmission on various types of ships.
SeaMac serves as Advance’s official marine power package turnkey contractor, providing complete propulsion and power systems for all types of vessels worldwide. This primarily includes marine engines, gearboxes, shafts, propellers, marine generator sets, electric control rod systems and other marine accessories. We also provide full lifecycle services to all our customers from design to powertrain supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.

Advantages Of  Advance Marine Products

1. A variety of control methods can be provided for users to choose
2. According to the user’s requirements, it can be configured with clutch, speed increase, deceleration, braking, multi-PTO output and other functions.

3.  With excellent machine performance, good design effectively reduce the noise, reduce the vibration.

4. The internal structure of these gearboxes can be designed to meet the requirements of different working conditions.

5. Professional gearbox specialists and after-sales service, spare parts directly available from stock.

Find Advance Marine Products by Series

This is the list of all series of Advance Marine Products.

Medium-Low Duty

Advance 135A Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.0-2.81
Trans.Capacity:0.099-0.070 kW/rpm
Power Range:52.5-198 kw

Advance J300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:2.04 – 3.95
Trans.Capacity:0.257-0.28 kW/rpm
Power Range:539.7-588.0 kw

Advance T300 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:4.73-8.47
Trans.Capacity:0.243-0.2 kW/rpm
Power Range:200-558.9 kw

Advance T300/1 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:8.94-9.45
Trans.Capacity:0.196 kW/rpm
Power Range:196-450.8 kw

Advance D300A Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:4.00-7.63
Trans.Capacity:0.257-0.125 kW/rpm
Power Range:125-642.5 kw

Advance HC300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:1.50-5.44
Trans.Capacity:0.257- 0.13 kW/rpm
Power Range:97.5-642.5 kw

Advance 300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:1.87-5.44
Trans.Capacity:0.257-0.125 kW/rpm
Power Range:93.75-642.5 kw

Advance HC138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.0-4.45
Trans.Capacity:0.11 kW/rpm
Power Range:110-275 kw

Advance 26 Marine Gearbox

Input Speed Range:1000-2000 r/min
Reduction Ratio:2.07-3.83
Trans.Capacity:0.012 kW/rpm
Power Range:12-24 kw

Advance 16A Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.50-4.00
Trans.Capacity:0.0199-0.0177 kW/rpm
Power Range:17.7-49.75 kw

Advance 06 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.52-3.50
Trans.Capacity:0.004 kW/rpm
Power Range:4-8.2 kw

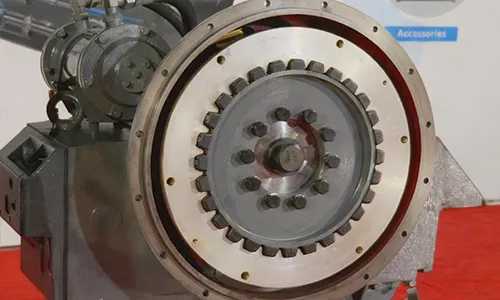

Advance HCT650/2 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:9.51-18.06
Trans.Capacity:0.402-0.29 kW/rpm
Power Range:290-844.2 kw

Advance HCG403 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:6.21-11.61
Trans.Capacity:0.331- 0.177 kW/rpm
Power Range:117-761.3 kw

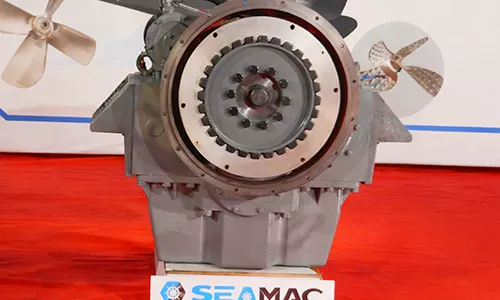

Advance HC600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.0-3.89
Trans.Capacity:0.490 kW/rpm
Power Range:490-1029 kw

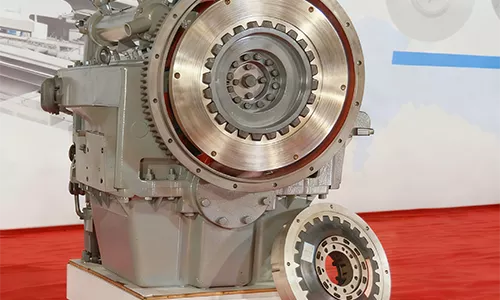

Advance HCD400A Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:3.96-5.89
Trans.Capacity:0.331- 0.272 kW/rpm
Power Range:272-595.8 kw

Advance MB270A Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:3.0-6.82
Trans.Capacity:0.147- 0.088 kW/rpm
Power Range:88-367.5 kw

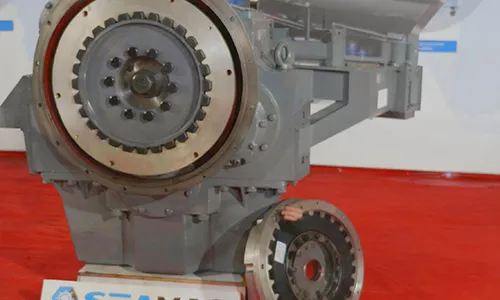

Advance HCD600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:4.18-5.71
Trans.Capacity:0.490- 0.430 kW/rpm
Power Range:430-1029 kw

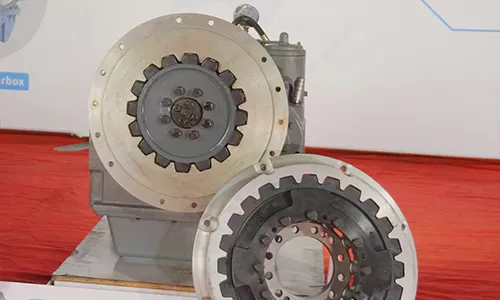

Advance MB242 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:2.0-5.88
Trans.Capacity:0.103- 0.074 kW/rpm
Power Range:111-257.5 kw

Advance MB170 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:1.97-5.88
Trans.Capacity:0.039- 0.027 kW/rpm
Power Range:40.5-97.5 kw

Advance HCT400A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:6.09-9.47
Trans.Capacity:0.331- 0.243 kW/rpm
Power Range:243-695.1 kw

Advance HCD138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:5.05-6.47
Trans.Capacity:0.11-0.093 kW/rpm
Power Range:93-275 kw

Advance HCN120 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.48-3.35
Trans.Capacity:0.1-0.08 kW/rpm
Power Range:80-250 kw

Advance 120C Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.48-3.35
Trans.Capacity:0.10- 0.08 kW/rpm
Power Range:80-250 kw

Advance 120B Marine Gearbox

Input Speed Range:750-1800 r/min
Reduction Ratio:2.03-3.71
Trans.Capacity:0.088 0.044 kW/rpm
Power Range:33-158.4 kw

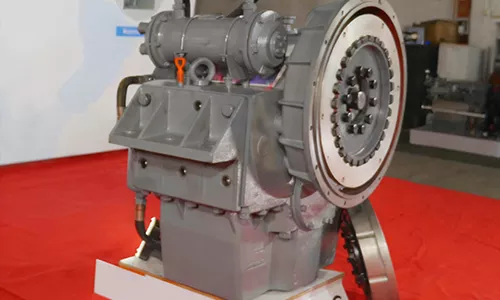

Advance HCT600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:6.06-9.35
Trans.Capacity:0.45-0.291 kW/rpm
Power Range:291-945 kw

Advance MA142 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:1.97-5.47
Trans.Capacity:0.03- 0.013 kW/rpm
Power Range:19.5-75 kW

Advance MA125 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:2.03-4.7
Trans.Capacity:0.02-0.011 kW/rpm
Power Range:16.5-60 kW

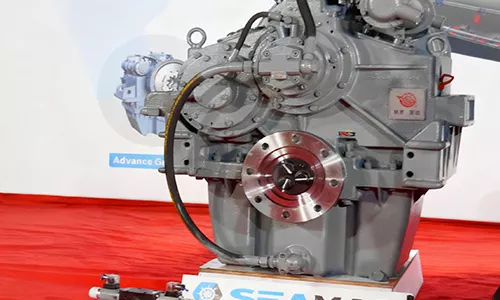

Advance HCT400A/1 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:8.15-13.96
Trans.Capacity:0.331- 0.204 kW/rpm
Power Range:204-695.1 kw

Advance HC400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:1.5-4.94
Trans.Capacity:0.331- 0.190 kW/rpm
Power Range:190-595.8 kw

Advance MA100 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:1.6-3.88
Trans.Capacity:0.009- 0.006 kW/rpm
Power Range:9-27 kw

Advance 40A Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.07-3.83
Trans.Capacity:0.0294-0.02 kW/rpm
Power Range:15-58.8 kw

Advance 135 Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.0-2.81
Trans.Capacity:0.099-0.070 kW/rpm
Power Range:52.5-198 kw

Medium-Heavy Duty

Advance HC1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.03-4.0
Trans.Capacity:1.213 kW/rpm
Power Range:607-2001kw

Advance HCD2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:3.65-6.11
Trans.Capacity:2.05-1.7 kW/rpm
Power Range:850-2870 kw

Advance HC2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:5.19-11.0
Trans.Capacity:1.48-1 kW/rpm
Power Range:600-2220 kw

Advance HCD1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.97-5.25
Trans.Capacity:1.213-1.164 kW/rpm
Power Range:582-2001.45 kw

Advance HCT2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:4.92-10.05
Trans.Capacity:2.05-1.54 kW/rpm
Power Range:770-2870 kw

Advance HC1250 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.919-0.850 kW/rpm
Power Range:1275-2757 kw

Advance HCW1100 Marine Gearbox

Input Speed Range:1500-1800 r/min
Reduction Ratio:15.88-21.99
Trans.Capacity:0.931-0.701 kW/rpm
Power Range:1051.5-1675.8 kw

Advance HCT1100 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:4.94-8.9
Trans.Capacity:0.846-0.653 kW/rpm
Power Range:391.8-1607.4 kw

Advance HCD1000 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3.43-5.83
Trans.Capacity:0.735-0.65 kW/rpm
Power Range:390-1543.5 kw

Advance HC1000 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:2.0-4.06
Trans.Capacity:0.735-0.65 kW/rpm
Power Range:390-1543.5 kw

Advance HCW801 Marine Gearbox

Input Speed Range:1000-1900 r/min
Reduction Ratio:12.01-24.37
Trans.Capacity:0.897-0.442 kW/rpm
Power Range:442-1704.3 kw

Advance HCD1400 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:3.5-5.86
Trans.Capacity:1.03 0.778 kW/rpm
Power Range:446.8-1957 kw

Advance HCT800/3 Marine Gearbox

Input Speed Range:800-2100 r/min
Reduction Ratio:16.56-21.94
Trans.Capacity:0.597-0.414 kW/rpm
Power Range:331.2-1253 kw

Advance HCW1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:6.99-12.54
Trans.Capacity:1.209-0.674 kW/rpm
Power Range:404.4-2176.2 kw

Advance HCD800 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3-5.89
Trans.Capacity:0.625-0.515 kW/rpm
Power Range:309-1312.5 kw

Advance HCT800 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3.0-5.89
Trans.Capacity:0.625- 0.480 kW/rpm
Power Range:288-1312.5 kw

Advance HCT800/2A Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:13.12-22.18
Trans.Capacity:0.6816-0.435 kW/rpm
Power Range:261-1295.04 kw

Advance HCT800/2 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:11.52-18.94
Trans.Capacity:0.6-0.382 kW/rpm
Power Range:229.2-1260 kw

Advance HCT800/1 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:6.91-17.91
Trans.Capacity:0.625-0.378 kW/rpm
Power Range:226.8-1312.5 kw

Light Duty & High speed

Advance HCA1401 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.52-2.93
Trans.Capacity:1.031-0.88 kW/rpm
Power Range:880-2371.3 kw

Advance HCQ1001 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.88 3.00 3.23
Trans.Capacity:1.03 0.90 kW/rpm
Power Range:900-2369 kw

Advance HCM1400 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.48-3.07
Trans.Capacity:1.031 0.89 kW/rpm
Power Range:890-2165.1 kw

Advance HCQ1000 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.18 2.84
Trans.Capacity:0.735 0.65 kW/rpm
Power Range:650-1690.5 kw

Advance HCQ1400 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.52-3.0
Trans.Capacity:1.03 0.9 kW/rpm
Power Range:90-2163 kw

Advance HCQ1601 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:3.04 3.24
Trans.Capacity:1.204 1.0 kW/rpm
Power Range:1000-2528.4 kw

Advance HCQ701 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.9-3.62
Trans.Capacity:0.554 0.514 0.49 kW/rpm
Power Range:490-1385 kw

Advance HCQH700 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.3-2.96
Trans.Capacity:0.554 0.514 0.49 kW/rpm
Power Range:490-1385 kw

Advance HCQ700 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.30-2.96
Trans.Capacity:0.554 0.514 0.49 kW/rpm
Power Range:490-1385 kw

Advance HCQ502 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.71 2.95
Trans.Capacity:0.404 kW/rpm
Power Range:404-929.2 kw

Advance HCQ501 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.03-2.45
Trans.Capacity:0.404 0.382 kW/rpm
Power Range:382-929.2 kw

Advance HCAM500 Marine Gearbox

Input Speed Range:1000-2600 r/min
Reduction Ratio:1.35 2.03 3.00
Trans.Capacity:0.398 kW/rpm
Power Range:398-1034.8 kw

Advance HCQ402 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.82-3.47
Trans.Capacity:0.331 kW/rpm
Power Range:331-761.3 kw

Advance HCQ401 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.0-2.5
Trans.Capacity:0.331-0.294 kW/rpm
Power Range:294-761.3 kw

Advance HCV230 Marine Gearbox

Input Speed Range:1000-2200 r/min
Reduction Ratio:1.49-2.48
Trans.Capacity:0.184-0.146 kW/rpm
Power Range:146-404.8 kw

Advance HC201 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.48-3.53
Trans.Capacity:0.147-0.132 kW/rpm
Power Range:132-367.5 kw

Advance HC200 Marine Gearbox

Input Speed Range:1000-2200 r/min
Reduction Ratio:1.48-2.28
Trans.Capacity:0.147 kW/rpm
Power Range:147-323.4 kw

Advance HCQ138 Marine Gearbox

Input Speed Range:1000-2600 r/min
Reduction Ratio:1.03-2.95
Trans.Capacity:0.11-0.098 kW/rpm
Power Range:98-286 kw

Advance MV100A Marine Gearbox

Input Speed Range:1000-3000 r/min
Reduction Ratio:1.23-2.87
Trans.Capacity:0.10-0.08 kW/rpm
Power Range:80-300 kw

Advance HCQ100 Marine Gearbox

Input Speed Range:1000-3500 r/min
Reduction Ratio:1.49-3.00
Trans.Capacity:0.079-0.062 kW/rpm
Power Range:62-276.5 kw

Advance HC65 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.53-2.96
Trans.Capacity:0.048-0.044 kW/rpm
Power Range:44-120 kw

Advance HC038A Marine Gearbox

Input Speed Range:1500-3200 r/min
Reduction Ratio:1.51-3.45
Trans.Capacity:0.028-0.02 kW/rpm
Power Range:30-89.6 kw

Advance HCQ300 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.06-2.55
Trans.Capacity:0.25-0.23 kW/rpm
Power Range:230-575 kw

Advance HCQ1600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.51-2.76
Trans.Capacity:1.204 1.0 kW/rpm
Power Range:1000-2528.4 kw

Gw series

Advance GWL78.88 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.04-6.09
Trans.Capacity:23.372-7.830 kW/rpm
Power Range:2349-22203.4 kw

Advance GWC78.88 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.04-6.09
Trans.Capacity:23.372-7.830 kW/rpm
Power Range:2349-22203.4 kw

Advance GWL75.90 Marine Gearbox

Input Speed Range:200-950 r/min
Reduction Ratio:2.01-6.02
Trans.Capacity:22.423-7.489 kW/rpm
Power Range:1497.8-21301.85 kw

Advance GWC75.90 Marine Gearbox

Input Speed Range:200-950 r/min
Reduction Ratio:2.01-6.02
Trans.Capacity:22.423-7.489 kW/rpm
Power Range:1497.8-21301.85 kw

Advance GWL70.85 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.98-6.05
Trans.Capacity:19.2-6.269 kW/rpm
Power Range:1880.7-18240 kw

Advance GWC70.85 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.98-6.05
Trans.Capacity:19.2-6.269 kW/rpm
Power Range:1880.7-18240 kw

Advance GWL70.82 Marine Gearbox

Input Speed Range:300-1150 r/min
Reduction Ratio:2.05-7.49
Trans.Capacity:17.451-4.771 kW/rpm
Power Range:1431.3-20068.65 kw

Advance GWC70.82 Marine Gearbox

Input Speed Range:300-1150 r/min
Reduction Ratio:2.05-7.49
Trans.Capacity:17.451-4.771 kW/rpm
Power Range:1431.3-20068.65 kw

Advance GWL70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.17
Trans.Capacity:15.643-5.191 kW/rpm
Power Range:1557.3-14860.85 kw

Advance GWC70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.17
Trans.Capacity:15.643-5.191 kW/rpm
Power Range:1557.3-14860.85 kw

Advance GWC66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.12
Trans.Capacity:13.866-4.650 kW/rpm
Power Range:1395-13172.7 kw

Advance GWL66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.12
Trans.Capacity:13.866-4.650 kW/rpm
Power Range:1395-13172.7 kw

Advance GWC63.71 Marine Gearbox

Input Speed Range:300-1200 r/min
Reduction Ratio:2.01-7.48
Trans.Capacity:12.23-3.294 kW/rpm
Power Range:988.2-14676 kw

Advance GWL60.74 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.99-6.94
Trans.Capacity:11.409-3.273 kW/rpm
Power Range:1309.2-13690.8 kw

Advance GWC60.74 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.99-6.94
Trans.Capacity:11.409-3.273 kW/rpm
Power Range:1309.2-13690.8 kw

Advance GWL60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.01-6.12
Trans.Capacity:9.931-3.261 kW/rpm
Power Range:1304.4-11917.2 kw

Advance GWC60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.01-6.12
Trans.Capacity:9.931-3.261 kW/rpm
Power Range:1304.4-11917.2 kw

Advance GWL52.62 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.02-5.95
Trans.Capacity:7.756-2.631 kW/rpm
Power Range:1052.4-9307.2 kw

Advance GWC52.62 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.02-5.95
Trans.Capacity:7.756-2.631 kW/rpm
Power Range:1052.4-9307.2 kw

Advance GWL52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.93-5.93
Trans.Capacity:7.438-2.426 kW/rpm
Power Range:970.4-8925.6 kw

Advance GWC52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.93-5.93
Trans.Capacity:7.438-2.426 kW/rpm
Power Range:970.4-8925.6 kw

Advance GWL49.54 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.94-6.00
Trans.Capacity:5.5-1.861 kW/rpm
Power Range:744.4-7700 kw

Advance GWC49.54 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.94-6.00
Trans.Capacity:5.5-1.861 kW/rpm
Power Range:744.4-7700 kw

Advance GWL45.52 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.97-6.04
Trans.Capacity:4.648-1.51 kW/rpm
Power Range:604-6507.2 kw

Advance GWC45.52 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.97-6.04
Trans.Capacity:4.648-1.51 kW/rpm
Power Range:604-6507.2 kw

Advance GWL45.49 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-5.98
Trans.Capacity:4.24-1.398 kW/rpm
Power Range:559.2-6784 kw

Advance GWC45.49 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-5.98
Trans.Capacity:4.24-1.398 kW/rpm
Power Range:559.2-6784 kw

Advance GWL42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-5.93
Trans.Capacity:3.28-1.106 kW/rpm
Power Range:442.4-5248 kw

Advance GWC42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-5.93
Trans.Capacity:3.28-1.106 kW/rpm
Power Range:442.4-5248 kw

Advance GWC39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:1.98-5.99
Trans.Capacity:2.585-0.852 kW/rpm
Power Range:340.8-4394.5 kw

Advance GWL39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:1.98-5.99
Trans.Capacity:2.585-0.852 kW/rpm
Power Range:340.8-4394.5 kw

Advance GWL36.39 Marine Gearbox

Input Speed Range:400-1900 r/min
Reduction Ratio:1.97-5.97
Trans.Capacity:1.92-0.634 kW/rpm
Power Range:253.6-3648 kw

Advance GWC36.39 Marine Gearbox

Input Speed Range:400-1900 r/min
Reduction Ratio:1.97-5.97
Trans.Capacity:1.92-0.634 kW/rpm
Power Range:253.6-3648 kw

Advance GWL32.35 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.08
Trans.Capacity:1.4175-0.48 kW/rpm
Power Range:192-2835 kw

Advance GWC32.35 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.08
Trans.Capacity:1.4175-0.48 kW/rpm
Power Range:192-2835 kw

Advance GWL30.32 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.03-6.05
Trans.Capacity:1.122-0.376 kW/rpm
Power Range:150.4-2244 kw

Advance GWC30.32 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.03-6.05
Trans.Capacity:1.122-0.376 kW/rpm
Power Range:150.4-2244 kw

Special Gearbox

Advance GCS900 Marine Gearbox

Input Speed Range:200-800 r/min
Reduction Ratio:2.0-4.10
Trans.Capacity:11.282 kw/rpm
Power Range:2880-7680 kW

Advance GCS880 Marine Gearbox

Input Speed Range:200-650 r/min
Reduction Ratio:2.0-3.95
Trans.Capacity:12.063 kw/rpm
Power Range:2413-7841 kW

Advance GCS850 Marine Gearbox

Input Speed Range:300-800 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:9.6 kw/rpm
Power Range:2880-7680 kW

Advance GCS760 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:1.94-3.95
Trans.Capacity:8.111 kw/rpm
Power Range:2160-6480 kW

Advance GCS750 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:7.2 kw/rpm
Power Range:2160-6840 kW

Advance GCS700B Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-4.47
Trans.Capacity:4.744-4.183 kw/rpm
Power Range:1673-5693 kW

Advance GCS660 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kW

Advance GCS590 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kW

Advance GCS540 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:2.825 kw/rpm
Power Range:1130-3390 kW

Advance GCS490 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:2.21 kw/rpm
Power Range:848-3392 kW

Advance GCS450 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:1.64 kw/rpm
Power Range:656-2624 kW

Advance GCS410 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kW

Advance GCS390 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kW

Advance GCS350 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.00-4.05
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296kW

Advance GCS320 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kW

Advance GCST91 Marine Gearbox

Input Speed Range:300-800 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:9.6 kw/rpm
Power Range:2880-7680 kW

Advance GCST77 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:8.111 kw/rpm
Power Range:2433-7300 kW

Advance GCST66 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.48-6.00
Trans.Capacity:7.20 kw/rpm
Power Range:2433-7300 kW

Advance GCST44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.96
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kW

Advance GCST33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kW

Advance GCST26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.825 kw/rpm
Power Range:228-1026 kW

Advance GCST20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.12 kw/rpm
Power Range:848-3392 kW

Advance GCST15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.50-5.96
Trans.Capacity:1.64 kw/rpm
Power Range:656-2624 kW

Advance GCST11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kW

Advance GCST9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kW

Advance GCST6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296 kW

Advance GCST5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kW

Advance GCSE44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kW

Advance GCSE33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kW

Advance GCSE26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.825 kw/rpm
Power Range:1130-3390 kW

Advance GCSE20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.12 kw/rpm
Power Range:848-2968 kW

Advance GCSE15 Marine Gearbox

Input Speed Range:400-1500 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.64 kw/rpm
Power Range:656-2624 kW

Advance GCSE11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kW

Advance GCSE9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kW

Advance GCSE6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296 kW

Advance GCSE5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kW

Advance GCH850 Marine Gearbox

Input Speed Range:400-800 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:9.6 kw/rpm
Power Range:2880-7680 kw

Advance GCH760 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:1.94-3.95
Trans.Capacity:8.111 kw/rpm
Power Range:2433.3-7300 kw

Advance GCH750 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:7.2 kw/rpm
Power Range:2160-6840 kw

Advance GCH660 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kw

Advance GCH590 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kw

Advance GCH540 Marine Gearbox

Input Speed Range:400-1200 RPM
Reduction Ratio:1.97-3.95
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCH410 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kw

Advance GCH390 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kw

Advance GCH350 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.00-4.05
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296 kW

Advance GCH320 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kw

Advance GCHT77 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.5-6
Trans.Capacity:8.111 kw/rpm
Power Range:2433.3-7300 kw

Advance GCHT66 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.48-6.00
Trans.Capacity:7.2 kw/rpm
Power Range:2160-6480 kw

Advance GCHT44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.52-5.96
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kw

Advance GCHT33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.54-5.95
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kw

Advance GCHT26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.58-5.95
Trans.Capacity:2.825 kw/rpm
Power Range:1130-3390 kw

Advance GCHT20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.12 kw/rpm
Power Range:848-2968 kw

Advance GCHT15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.46-5.96
Trans.Capacity:1.64 kw/rpm
Power Range:656-2624 kw

Advance GCHT11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.52-5.95
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kw

Advance GCHT9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kw

Advance GCHT6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296 kw

Advance GCHT5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kw

Advance HCS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:1.54-4.47 / 1.24-4.05
Trans.Capacity:1.75-2.05 kw/rpm
Power Range:875-2870 kw

Advance HCS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:2.28-4.40 / 1.83-4.00
Trans.Capacity:1.26-1.48 kW/rpm
Power Range:756-2220 kw

Advance HCS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.03-4.00 / 1.63-3.64
Trans.Capacity:1.213 kw/rpm
Power Range:606.5-2001.5 kw

Advance HCS1200 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:2.03-4.47 / 1.61-4.05
Trans.Capacity:0.650-0.93 kw/rpm
Power Range:390-1767 kw

Advance HCS1000 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:2.00-4.06 / 1.59-3.65
Trans.Capacity:0.65-0.735 kw/rpm
Power Range:390-1397 kw

Advance HCS600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.00-3.89 / 1.61-3.50
Trans.Capacity:0.40-0.48 kw/rmp
Power Range:400-1008 kw

Advance HCS400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:1.50-4.06 / 1.21-3.65
Trans.Capacity:0.279-0.331 kw/rpm
Power Range:279-596 kw

Advance HCS302 Marine Gearbox

Input Speed Range:750-1800 r/min
Reduction Ratio:2.00-4.43 / 1.62-4.04
Trans.Capacity:0.184-0.257 kw/r/min
Power Range:138-462.6 kw

Advance HCS201 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.48-3.53 / 2.00-3.19
Trans.Capacity:0.132-0.147 kw/rpm
Power Range:132-367.5 kw

Advance HCS138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.00-4.45 / 1.60-4.05
Trans.Capacity:0.110 kW/rpm
Power Range:110-275 kw

Advance HCTS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:4.92-10.05 / 3.91-9.13
Trans.Capacity:1.54-2.05 kw/rpm
Power Range:770-2870 kw

Advance HCTS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:5.19-11.0 / 4.12-10.0
Trans.Capacity:1.00-1.48 kw/rpm
Power Range:600-2220 kw

Advance HCTS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:5.55-9.53 / 4.40-8.73
Trans.Capacity:0.93-1.213 kw/rpm
Power Range:465-2001 kw

Advance HCTS1200 Marine Gearbox

Input Speed Range:700-1800 r/min
Reduction Ratio:5.05-7.90 / 4.07-6.19
Trans.Capacity:0.93 kw/rpm
Power Range:651-1674 kw

Advance HCTS1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:4.06-9.55 / 3.25-8.72
Trans.Capacity:0.85-1.03 kw/rpm
Power Range:510-1854 kw

Advance HCTS800 Marine Gearbox

Input Speed Range:600~1800 r/min
Reduction Ratio:4.95-8.40 / 3.90-7.64
Trans.Capacity:0.480-0.625 kw/rpm
Power Range:288-1125 kw

Advance HCDS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:3.65-6.11 / 2.97-5.52
Trans.Capacity:1.7-2.05 kw/rpm
Power Range:850-2870 kw

Advance HCDS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:3.00-6.05 / 2.43-5.48
Trans.Capacity:1.19-1.48 kw/rpm
Power Range:714-2220 kw

Advance HCDS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.97-5.25 / 2.36-4.77
Trans.Capacity:1.164-1.213 kw/rpm
Power Range:582-2002 kw

Advance HCDS1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:4.04-5.86 / 3.21-5.35
Trans.Capacity:0.778-1.03 kw/rpm
Power Range:467-1854 kw

Advance HCDS1200 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:3.95-5.58 / 3.11-5.05
Trans.Capacity:0.93-0.65 kw/rpm
Power Range:390-1767 kw

Advance HCDS800 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:3.96-5.89 / 3.19-5.30
Trans.Capacity:0.515-0.625 kw/rpm
Power Range:309-1125 kw

Advance HCDS600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:4.18-5.71 / 3.29-5.11
Trans.Capacity:0.40-0.48 kw/rpm
Power Range:400-1008 kw

Advance HCDS400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:3.96-5.89 / 3.14-5.30
Trans.Capacity:0.272-0.331 kw/rpm
Power Range:272-596 kw

Advance HCDS302 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:4.00-7.63 / 3.17-6.78
Trans.Capacity:0.13-0.257 kW/rpm
Power Range:97.5-642.5 kw

Advance SGW49.54 Marine Gearbox

Input Speed Range:400-880 r/min
Reduction Ratio:3.39 / 2.92
Trans.Capacity:3.088-3.588 kw/rpm
Power Range:1235-3157 kw

Advance SGW42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:5.6 / 5.00
Trans.Capacity:1.103-1.243 kw/rpm
Power Range:2433-7705 kw

Advance SGW39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:4.16 / 3.57
Trans.Capacity:1.227-1.427 kw/rpm
Power Range:491-2426 kw

Advance SGW32.35 Marine Gearbox

Input Speed Range:400-850 r/min
Reduction Ratio:1.92-2.17 / 1.62-1.81
Trans.Capacity:1.192-1.604 kw/rpm
Power Range:477-1363 kw

Advance SGW30.32 Marine Gearbox

Input Speed Range:400-1300 r/min
Reduction Ratio:2.33-3.52 / 1.94-2.91
Trans.Capacity:0.61-1.109 kw/rpm
Power Range:244-1441 kw

Advance SGWS66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:6.99 kw/rpm
Power Range:2097-6640.5 kw

Advance SGWS70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.94-3.95 / 1.57-3.59
Trans.Capacity:8.111 kw/rpm
Power Range:2433.3-7705.45 kw

Advance SGWS60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95 / 1.61-3.59
Trans.Capacity:4.625 kw/rpm
Power Range:1850-5550 kw

Advance SGWS52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:3.448 kw/rpm
Power Range:1379.2-4137.6 kw

Advance SGWS49.54 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:2.647 kw/rpm
Power Range:1058.8-3176.4 kw

Advance GCHE44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.52-5.96
Trans.Capacity:5.05 kw/rpm
Power Range:2020-6060 kW

Advance GCHE33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:3.64 kw/rpm
Power Range:1456-4368 kw

Advance GCHE26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.825 kw/rpm
Power Range:1130-3390 kw

Advance GCHE20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.12 kw/rpm
Power Range:848-2968 kw

Advance GCHE15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.64 kw/rpm
Power Range:656-2624 kw

Advance GCHE11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.292 kw/rpm
Power Range:517-2067 kw

Advance GCHE9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.96 kw/rpm
Power Range:384-1728 kw

Advance GCHE6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.72 kw/rpm
Power Range:288-1296 kw

Advance GCHE5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.57 kw/rpm
Power Range:228-1026 kw

WhatsApp Online logo

Sales Team


Marine Sales - Mrs. Gazit Wong WhatApp-Icon

Marine Sale - Mrs. Nora Chen WhatApp-Icon

Ventas españolas - Mrs. Vuctiria WhatApp-Icon


Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee       WhatApp-Icon

Contact EMAC Now!

Pin It on Pinterest
