Advance-Marine Gearbox Introduction

Hangzhou Advance Gearbox Co., LTD, was founded in 1960. In 2008, the company completed the shareholding system and was officially changed into Hangzhou Advance Gearbox Group Co., LTD., which was listed in Shanghai Stock Exchange in October 2010.
According to different technology platforms and application fields, the company has developed seven series of products including Medium-Low Duty series, lMedium-Heavy Duty series, Light Duty & Hight Speed series, GW series, Special Gearbox, and Electric Propulsion System.
Our marine gearbox products covering ranges from 10 kw to 10000 kw marine gearbox design development and manufacturing capabilities, which has been widely used in fishing boat, carrier, special ships and other types of vessels. Based on the leading research and development and manufacturing of Marine gear boxes in China, and dedicated to providing integrated power transmission solutions for the majority of users.

Find Advance Marine Gearbox by Application

We classified our marine gearbox by the type of application, which also related to the input power and torque range.

Medium-Low Duty

Advance 06 Marine Gearbox

Advance 06 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.52-3.50
Trans.Capacity:0.004 kW/RPM
Power Range:4-8.2 kW

Advance 16A Marine Gearbox

Advance 16A Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.50-4.00
Trans.Capacity:0.0199-0.0177 kW/RPM
Power Range:17.7-49.75 kW

Advance 26 Marine Gearbox

Advance 26 Marine Gearbox

Input Speed Range:1000-2000 r/min
Reduction Ratio:2.07-3.83
Trans.Capacity:0.012 kW/RPM
Power Range:12-24 kW

Advance 40A Marine Gearbox

Advance 40A Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.07-3.83
Trans.Capacity:0.0294-0.02 kW/RPM
Power Range:15-58.8 kW

Advance MA100 Marine Gearbox

Advance MA100 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:1.6-3.88
Trans.Capacity:0.009- 0.006 kW/RPM
Power Range:9-27 kW

Advance MA125 Marine Gearbox

Advance MA125 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:2.03-4.7
Trans.Capacity:0.02-0.011 kW/RPM
Power Range:16.5-60 kW

Advance MA142 Marine Gearbox

Advance MA142 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:1.97-5.47
Trans.Capacity:0.03- 0.013 kW/RPM
Power Range:19.5-75 kW

Advance 120B Marine Gearbox

Advance 120B Marine Gearbox

Input Speed Range:750-1800 r/min
Reduction Ratio:2.03-3.71
Trans.Capacity:0.088 0.044 kW/RPM
Power Range:33-158.4 kW

Advance 120C Marine Gearbox

Advance 120C Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.48-3.35
Trans.Capacity:0.10- 0.08 kW/RPM
Power Range:80-250 kW

Advance HCN120 Marine Gearbox

Advance HCN120 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.48-3.35
Trans.Capacity:0.1-0.08 kW/RPM
Power Range:80-250 kW

Advance 135A Marine Gearbox

Advance 135A Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.0-2.81
Trans.Capacity:0.099-0.070 kW/RPM
Power Range:52.5-198 kW

Advance 135 Marine Gearbox

Advance 135 Marine Gearbox

Input Speed Range:750-2000 r/min
Reduction Ratio:2.0-2.81
Trans.Capacity:0.099-0.070 kW/RPM
Power Range:52.5-198 kW

Advance HCD138 Marine Gearbox

Advance HCD138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:5.05-6.47
Trans.Capacity:0.11-0.093 kW/RPM
Power Range:93-275 kW

Advance HC138 Marine Gearbox

Advance HC138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.0-4.45
Trans.Capacity:0.11 kW/RPM
Power Range:110-275 kW

Advance MB270A Marine Gearbox

Advance MB270A Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:3.0-6.82
Trans.Capacity:0.147- 0.088 kW/RPM
Power Range:88-367.5 kW

Advance MB242 Marine Gearbox

Advance MB242 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:2.0-5.88
Trans.Capacity:0.103- 0.074 kW/RPM
Power Range:111-257.5 kW

Advance MB170 Marine Gearbox

Advance MB170 Marine Gearbox

Input Speed Range:1500-2500 r/min
Reduction Ratio:1.97-5.88
Trans.Capacity:0.039- 0.027 kW/RPM
Power Range:40.5-97.5 kW

Advance J300 Marine Gearbox

Advance J300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:2.04 – 3.95
Trans.Capacity:0.257-0.28 kW/RPM
Power Range:539.7-588.0 kW

Advance T300 Marine Gearbox

Advance T300 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:4.73-8.47
Trans.Capacity:0.243-0.2 kW/RPM
Power Range:200-558.9 kW

Advance T300/1 Marine Gearbox

Advance T300/1 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:8.94-9.45
Trans.Capacity:0.196 kW/RPM
Power Range:196-450.8 kW

Advance D300A Marine Gearbox

Advance D300A Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:4.00-7.63
Trans.Capacity:0.257-0.125 kW/RPM
Power Range:125-642.5 kW

Advance HC300 Marine Gearbox

Advance HC300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:1.50-5.44
Trans.Capacity:0.257- 0.13 kW/RPM
Power Range:97.5-642.5 kW

Advance 300 Marine Gearbox

Advance 300 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:1.87-5.44
Trans.Capacity:0.257-0.125 kW/RPM
Power Range:93.75-642.5 kW

Advance HCG403 Marine Gearbox

Advance HCG403 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:6.21-11.61
Trans.Capacity:0.331- 0.177 kW/RPM
Power Range:117-761.3 kW

Advance HCD400A Marine Gearbox

Advance HCD400A Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:3.96-5.89
Trans.Capacity:0.331- 0.272 kW/RPM
Power Range:272-595.8 kW

Advance HCT400A Marine Gearbox

Advance HCT400A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:6.09-9.47
Trans.Capacity:0.331- 0.243 kW/RPM
Power Range:243-695.1 kW

Advance HCT400A/1 Marine Gearbox

Advance HCT400A/1 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:8.15-13.96
Trans.Capacity:0.331- 0.204 kW/RPM
Power Range:204-695.1 kW

Advance HC400 Marine Gearbox

Advance HC400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:1.5-4.94
Trans.Capacity:0.331- 0.190 kW/RPM
Power Range:190-595.8 kW

Advance HCT650/2 Marine Gearbox

Advance HCT650/2 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:9.51-18.06
Trans.Capacity:0.402-0.29 kW/RPM
Power Range:290-844.2 kW

Advance HC600A Marine Gearbox

Advance HC600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.0-3.89
Trans.Capacity:0.490 kW/RPM
Power Range:490-1029 kW

Advance HCD600A Marine Gearbox

Advance HCD600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:4.18-5.71
Trans.Capacity:0.490- 0.430 kW/RPM
Power Range:430-1029 kW

Advance HCT600A Marine Gearbox

Advance HCT600A Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:6.06-9.35
Trans.Capacity:0.45-0.291 kW/RPM
Power Range:291-945 kW

Medium-Heavy Duty

Advance HCT800/1 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:6.91-17.91
Trans.Capacity:0.625-0.378 kW/RPM
Power Range:226.8-1312.5 kW

Advance HCT800/2 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:11.52-18.94
Trans.Capacity:0.6-0.382 kW/RPM
Power Range:229.2-1260 kW

Advance HCT800/2A Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:13.12-22.18
Trans.Capacity:0.6816-0.435 kW/RPM
Power Range:261-1295.04 kW

Advance HCT800 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3.0-5.89
Trans.Capacity:0.625- 0.480 kW/RPM
Power Range:288-1312.5 kW

Advance HCD800 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3-5.89
Trans.Capacity:0.625-0.515 kW/RPM
Power Range:309-1312.5 kW

Advance HCT800/3 Marine Gearbox

Input Speed Range:800-2100 r/min
Reduction Ratio:16.56-21.94
Trans.Capacity:0.597-0.414 kW/RPM
Power Range:331.2-1253 kW

Advance HCW801 Marine Gearbox

Input Speed Range:1000-1900 r/min
Reduction Ratio:12.01-24.37
Trans.Capacity:0.897-0.442 kW/RPM
Power Range:442-1704.3 kW

Advance HCD1000 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:3.43-5.83
Trans.Capacity:0.735-0.65 kW/RPM
Power Range:390-1543.5 kW

Advance HC1000 Marine Gearbox

Input Speed Range:600-2100 r/min
Reduction Ratio:2.0-4.06
Trans.Capacity:0.735-0.65 kW/RPM
Power Range:390-1543.5 kW

Advance HCW1100 Marine Gearbox

Input Speed Range:1500-1800 r/min
Reduction Ratio:15.88-21.99
Trans.Capacity:0.931-0.701 kW/RPM
Power Range:1051.5-1675.8 kW

Advance HCT1100 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:4.94-8.9
Trans.Capacity:0.846-0.653 kW/RPM
Power Range:391.8-1607.4 kW

Advance HC1201 Marine Gearbox

Input Speed Range:700-1500 r/min
Reduction Ratio:2.50-5.47
Trans.Capacity:0.73-0.93 kW/RPM
Power Range:511-1395 kW

Advance HC1250 Marine Gearbox

Input Speed Range:1500-3000 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.919-0.850 kW/RPM
Power Range:1275-2757 kW

Advance HCW1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:6.99-12.54
Trans.Capacity:1.209-0.674 kW/RPM
Power Range:404.4-2176.2 kW

Advance HCD1400 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:3.5-5.86
Trans.Capacity:1.03 0.778 kW/RPM
Power Range:446.8-1957 kW

Advance HCD1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.97-5.25
Trans.Capacity:1.213-1.164 kW/RPM
Power Range:582-2001.45 kW

Advance HC1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.03-4.0
Trans.Capacity:1.213 kW/RPM
Power Range:607-2001kW

Advance HC2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:5.19-11.0
Trans.Capacity:1.48-1 kW/RPM
Power Range:600-2220 kW

Advance HCT2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:4.92-10.05
Trans.Capacity:2.05-1.54 kW/RPM
Power Range:770-2870 kW

Advance HCD2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:3.65-6.11
Trans.Capacity:2.05-1.7 kW/RPM
Power Range:850-2870 kW

Light Duty & High Speed

Advance HC038A Marine Gearbox

Input Speed Range:1500-3200 r/min
Reduction Ratio:1.51-3.45
Trans.Capacity:0.028-0.02 kW/RPM
Power Range:30-89.6 kW

Advance HC65 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.53-2.96
Trans.Capacity:0.048-0.044 kW/RPM
Power Range:44-120 kW

Advance HCQ100 Marine Gearbox

Input Speed Range:1000-3500 r/min
Reduction Ratio:1.49-3.00
Trans.Capacity:0.079-0.062 kW/RPM
Power Range:62-276.5 kW

Advance MV100A Marine Gearbox

Input Speed Range:1000-3000 r/min
Reduction Ratio:1.23-2.87
Trans.Capacity:0.10-0.08 kW/RPM
Power Range:80-300 kW

Advance HCQ138 Marine Gearbox

Input Speed Range:1000-2600 r/min
Reduction Ratio:1.03-2.95
Trans.Capacity:0.11-0.098 kW/RPM
Power Range:98-286 kW

Advance HC200 Marine Gearbox

Input Speed Range:1000-2200 r/min
Reduction Ratio:1.48-2.28
Trans.Capacity:0.147 kW/RPM
Power Range:147-323.4 kW

Advance HC201 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.48-3.53
Trans.Capacity:0.147-0.132 kW/RPM
Power Range:132-367.5 kW

Advance HCV230 Marine Gearbox

Input Speed Range:1000-2200 r/min
Reduction Ratio:1.49-2.48
Trans.Capacity:0.184-0.146 kW/RPM
Power Range:146-404.8 kW

Advance HCQ300 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.06-2.55
Trans.Capacity:0.25-0.23 kW/RPM
Power Range:230-575 kW

Advance HCQ401 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.0-2.5
Trans.Capacity:0.331-0.294 kW/RPM
Power Range:294-761.3 kW

Advance HCQ402 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.82-3.47
Trans.Capacity:0.331 kW/RPM
Power Range:331-761.3 kW

Advance HCAM500 Marine Gearbox

Input Speed Range:1000-2600 r/min
Reduction Ratio:1.35 2.03 3.00
Trans.Capacity:0.398 kW/RPM
Power Range:398-1034.8 kW

Advance HCQ501 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.03-2.45
Trans.Capacity:0.404 0.382 kW/RPM
Power Range:382-929.2 kW

Advance HCQ502 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.71 2.95
Trans.Capacity:0.404 kW/RPM
Power Range:404-929.2 kW

Advance HCQ700 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.30-2.96
Trans.Capacity:0.554 0.514 0.49 kW/RPM
Power Range:490-1385 kW

Advance HCQH700 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.3-2.96
Trans.Capacity:0.554 0.514 0.49 kW/RPM
Power Range:490-1385 kW

Advance HCQ701 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.9-3.62
Trans.Capacity:0.554 0.514 0.49 kW/RPM
Power Range:490-1385 kW

Advance HCQ1000 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.18 2.84
Trans.Capacity:0.735 0.65 kW/RPM
Power Range:650-1690.5 kW

Advance HCQ1001 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.88 3.00 3.23
Trans.Capacity:1.03 0.90 kW/RPM
Power Range:900-2369 kW

Advance HCQ1400 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.52-3.0
Trans.Capacity:1.03 0.9 kW/RPM
Power Range:90-2163 kW

Advance HCM1400 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.48-3.07
Trans.Capacity:1.031 0.89 kW/RPM
Power Range:890-2165.1 kW

Advance HCA1401 Marine Gearbox

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.52-2.93
Trans.Capacity:1.031-0.88 kW/RPM
Power Range:880-2371.3 kW

Advance HCQ1600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.51-2.76
Trans.Capacity:1.204 1.0 kW/RPM
Power Range:1000-2528.4 kW

Advance HCQ1601 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:3.04 3.24
Trans.Capacity:1.204 1.0 kW/RPM
Power Range:1000-2528.4 kW

GW Series

Advance GWC28.30 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.14
Trans.Capacity:0.865-0.29 kW/RPM
Power Range:116-1730 kW

Advance GWC30.32 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.03-6.05
Trans.Capacity:1.122-0.376 kW/RPM
Power Range:150.4-2244 kW

Advance GWC32.35 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.08
Trans.Capacity:1.4175-0.48 kW/RPM
Power Range:192-2835 kW

Advance GWC36.39 Marine Gearbox

Input Speed Range:400-1900 r/min
Reduction Ratio:1.97-5.97
Trans.Capacity:1.92-0.634 kW/RPM
Power Range:253.6-3648 kW

Advance GWC39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:1.98-5.99
Trans.Capacity:2.585-0.852 kW/RPM
Power Range:340.8-4394.5 kW

Advance GWC42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-5.93
Trans.Capacity:3.28-1.106 kW/RPM
Power Range:442.4-5248 kW

Advance GWC45.49 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-5.98
Trans.Capacity:4.24-1.398 kW/RPM
Power Range:559.2-6784 kW

Advance GWC45.52 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.97-6.04
Trans.Capacity:4.648-1.51 kW/RPM
Power Range:604-6507.2 kW

Advance GWC49.54 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.94-6.00
Trans.Capacity:5.5-1.861 kW/RPM
Power Range:744.4-7700 kW

Advance GWC52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.93-5.93
Trans.Capacity:7.438-2.426 kW/RPM
Power Range:970.4-8925.6 kW

Advance GWC52.62 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.02-5.95
Trans.Capacity:7.756-2.631 kW/RPM
Power Range:1052.4-9307.2 kW

Advance GWC60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.01-6.12
Trans.Capacity:9.931-3.261 kW/RPM
Power Range:1304.4-11917.2 kW

Advance GWC60.74 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.99-6.94
Trans.Capacity:11.409-3.273 kW/RPM
Power Range:1309.2-13690.8 kW

Advance GWC63.71 Marine Gearbox

Input Speed Range:300-1200 r/min
Reduction Ratio:2.01-7.48
Trans.Capacity:12.23-3.294 kW/RPM
Power Range:988.2-14676 kW

Advance GWC66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.12
Trans.Capacity:13.866-4.650 kW/RPM
Power Range:1395-13172.7 kW

Advance GWC70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.17
Trans.Capacity:15.643-5.191 kW/RPM
Power Range:1557.3-14860.85 kW

Advance GWC70.82 Marine Gearbox

Input Speed Range:300-1150 r/min
Reduction Ratio:2.05-7.49
Trans.Capacity:17.451-4.771 kW/RPM
Power Range:1431.3-20068.65 kW

Advance GWC70.85 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.98-6.05
Trans.Capacity:19.2-6.269 kW/RPM
Power Range:1880.7-18240 kW

Advance GWC75.90 Marine Gearbox

Input Speed Range:200-950 r/min
Reduction Ratio:2.01-6.02
Trans.Capacity:22.423-7.489 kW/RPM
Power Range:1497.8-21301.85 kW

Advance GWC78.88 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.04-6.09
Trans.Capacity:23.372-7.830 kW/RPM
Power Range:2349-22203.4 kW

Advance GWD30.32A Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 0.56 0.52 kW/RPM
Power Range:208-1026 kW

Advance GWS30.32A Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 0.56 0.52 kW/RPM
Power Range:208-1026 kW

Advance GWH30.32A Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 0.56 0.52 kW/RPM
Power Range:208-1026 kW

Advance GWL28.30 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.14
Trans.Capacity:0.865-0.29 kW/RPM
Power Range:116-1730 kW

Advance GWL30.32 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.03-6.05
Trans.Capacity:1.122-0.376 kW/RPM
Power Range:150.4-2244 kW

Advance GWL32.35 Marine Gearbox

Input Speed Range:400-2000 r/min
Reduction Ratio:2.06-6.08
Trans.Capacity:1.4175-0.48 kW/RPM
Power Range:192-2835 kW

Advance GWL36.39 Marine Gearbox

Input Speed Range:400-1900 r/min
Reduction Ratio:1.97-5.97
Trans.Capacity:1.92-0.634 kW/RPM
Power Range:253.6-3648 kW

Advance GWL39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:1.98-5.99
Trans.Capacity:2.585-0.852 kW/RPM
Power Range:340.8-4394.5 kW

Advance GWL42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-5.93
Trans.Capacity:3.28-1.106 kW/RPM
Power Range:442.4-5248 kW

Advance GWL45.49 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-5.98
Trans.Capacity:4.24-1.398 kW/RPM
Power Range:559.2-6784 kW

Advance GWL45.52 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.97-6.04
Trans.Capacity:4.648-1.51 kW/RPM
Power Range:604-6507.2 kW

Advance GWL49.54 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:1.94-6.00
Trans.Capacity:5.5-1.861 kW/RPM
Power Range:744.4-7700 kW

Advance GWL52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.93-5.93
Trans.Capacity:7.438-2.426 kW/RPM
Power Range:970.4-8925.6 kW

Advance GWL52.62 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.02-5.95
Trans.Capacity:7.756-2.631 kW/RPM
Power Range:1052.4-9307.2 kW

Advance GWL60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.01-6.12
Trans.Capacity:9.931-3.261 kW/RPM
Power Range:1304.4-11917.2 kW

Advance GWL60.74 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.99-6.94
Trans.Capacity:11.409-3.273 kW/RPM
Power Range:1309.2-13690.8 kW

Advance GWL66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.12
Trans.Capacity:13.866-4.650 kW/RPM
Power Range:1395-13172.7 kW

Advance GWL70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.05-6.17
Trans.Capacity:15.643-5.191 kW/RPM
Power Range:1557.3-14860.85 kW

Advance GWL70.82 Marine Gearbox

Input Speed Range:300-1150 r/min
Reduction Ratio:2.05-7.49
Trans.Capacity:17.451-4.771 kW/RPM
Power Range:1431.3-20068.65 kW

Advance GWL70.85 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.98-6.05
Trans.Capacity:19.2-6.269 kW/RPM
Power Range:1880.7-18240 kW

Advance GWL75.90 Marine Gearbox

Input Speed Range:200-950 r/min
Reduction Ratio:2.01-6.02
Trans.Capacity:22.423-7.489 kW/RPM
Power Range:1497.8-21301.85 kW

Advance GWL78.88 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:2.04-6.09
Trans.Capacity:23.372-7.830 kW/RPM
Power Range:2349-22203.4 kW

Advance GWK30.32A Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 0.56 0.52 kW/RPM
Power Range:208-1026 kW

Special Gearbox

Advance GCS320 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kW

Advance GCS350 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.00-4.05
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296kW

Advance GCS390 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCS410 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCS450 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:1.64 kW/RPM
Power Range:656-2624 kW

Advance GCS490 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:2.21 kW/RPM
Power Range:848-3392 kW

Advance GCS540 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCS590 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCS660 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance GCS700B Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-4.47
Trans.Capacity:4.744-4.183 kW/RPM
Power Range:1673-5693 kW

Advance GCS750 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:7.2 kW/RPM
Power Range:2160-6840 kW

Advance GCS760 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:1.94-3.95
Trans.Capacity:8.111 kW/RPM
Power Range:2160-6480 kW

Advance GCS850 Marine Gearbox

Input Speed Range:300-800 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:9.6 kW/RPM
Power Range:2880-7680 kW

Advance GCS880 Marine Gearbox

Input Speed Range:200-650 r/min
Reduction Ratio:2.0-3.95
Trans.Capacity:12.063 kW/RPM
Power Range:2413-7841 kW

Advance GCS900 Marine Gearbox

Input Speed Range:200-800 r/min
Reduction Ratio:2.0-4.10
Trans.Capacity:11.282 kW/RPM
Power Range:2880-7680 kW

Advance GCST5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kW

Advance GCST6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296 kW

Advance GCST9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCST11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCST15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.50-5.96
Trans.Capacity:1.64 kW/RPM
Power Range:656-2624 kW

Advance GCST20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.12 kW/RPM
Power Range:848-3392 kW

Advance GCST26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.825 kW/RPM
Power Range:228-1026 kW

Advance GCST33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCST44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.50-5.96
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance GCST66 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.48-6.00
Trans.Capacity:7.20 kW/RPM
Power Range:2433-7300 kW

Advance GCST77 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:8.111 kW/RPM
Power Range:2433-7300 kW

Advance GCST91 Marine Gearbox

Input Speed Range:300-800 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:9.6 kW/RPM
Power Range:2880-7680 kW

Advance GCST108 Marine Gearbox

Input Speed Range:200-800 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:11.282 kW/RPM
Power Range:2880-7860 kW

Advance GCST115 Marine Gearbox

Input Speed Range:200-650 r/min
Reduction Ratio:4.50-6.00
Trans.Capacity:12.063 kW/RPM
Power Range:2413-7841 kW

Advance GCSE5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kW

Advance GCSE6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296 kW

Advance GCSE9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCSE11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCSE15 Marine Gearbox

Input Speed Range:400-1500 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.64 kW/RPM
Power Range:656-2624 kW

Advance GCSE20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.12 kW/RPM
Power Range:848-2968 kW

Advance GCSE26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCSE33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCSE44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance GCH320 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:1.97-4.00
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kw

Advance GCH350 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.00-4.05
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296 kW

Advance GCH390 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCH410 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCH490 Marine Gearbox

Input Speed Range:400-1400 RPM
Reduction Ratio:2.03-3.95
Trans.Capacity:2.12 kW/RPM
Power Range:848-2968 kW

Advance GCH540 Marine Gearbox

Input Speed Range:400-1200 RPM
Reduction Ratio:1.97-3.95
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCH590 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCH660 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance GCH750 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:7.2 kW/RPM
Power Range:2160-6840 kW

Advance GCH760 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:1.94-3.95
Trans.Capacity:8.111 kW/RPM
Power Range:2433.3-7300 kW

Advance GCH850 Marine Gearbox

Input Speed Range:400-800 r/min
Reduction Ratio:1.97-3.95
Trans.Capacity:9.6 kW/RPM
Power Range:2880-7680 kW

Advance GCH880 Marine Gearbox

Input Speed Range:200-800 r/min
Reduction Ratio:4.5-6
Trans.Capacity:12.063 kW/RPM
Power Range:2413-7841 kW

Advance GCHT5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kW

Advance GCHT6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296 kW

Advance GCHT9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCHT11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.52-5.95
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCHT15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:4.46-5.96
Trans.Capacity:1.64 kW/RPM
Power Range:656-2624 kW

Advance GCHT20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:4.50-5.95
Trans.Capacity:2.12 kW/RPM
Power Range:848-2968 kW

Advance GCHT26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.58-5.95
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCHT33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.54-5.95
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCHT44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.52-5.96
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance GCHT66 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.48-6.00
Trans.Capacity:7.2 kW/RPM
Power Range:2160-6480 kW

Advance GCHT77 Marine Gearbox

Input Speed Range:300-900 r/min
Reduction Ratio:4.5-6
Trans.Capacity:8.111 kW/RPM
Power Range:2433.3-7300 kW

Advance GCHE5 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.57 kW/RPM
Power Range:228-1026 kW

Advance GCHE6 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.72 kW/RPM
Power Range:288-1296 kW

Advance GCHE9 Marine Gearbox

Input Speed Range:400-1800 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:0.96 kW/RPM
Power Range:384-1728 kW

Advance GCHE11 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.292 kW/RPM
Power Range:517-2067 kW

Advance GCHE15 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:1.64 kW/RPM
Power Range:656-2624 kW

Advance GCHE20 Marine Gearbox

Input Speed Range:400-1400 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.12 kW/RPM
Power Range:848-2968 kW

Advance GCHE26 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:2.825 kW/RPM
Power Range:1130-3390 kW

Advance GCHE33 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:6.50-8.00
Trans.Capacity:3.64 kW/RPM
Power Range:1456-4368 kW

Advance GCHE44 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:4.52-5.96
Trans.Capacity:5.05 kW/RPM
Power Range:2020-6060 kW

Advance HCS138 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.00-4.45 / 1.60-4.05
Trans.Capacity:0.110 kW/RPM
Power Range:110-275 kW

Advance HCS201 Marine Gearbox

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.48-3.53 / 2.00-3.19
Trans.Capacity:0.132-0.147 kW/RPM
Power Range:132-367.5 kW

Advance HCS302 Marine Gearbox

Input Speed Range:750-1800 r/min
Reduction Ratio:2.00-4.43 / 1.62-4.04
Trans.Capacity:0.184-0.257 kW/RPM
Power Range:138-462.6 kw

Advance HCS400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:1.50-4.06 / 1.21-3.65
Trans.Capacity:0.279-0.331 kW/RPM
Power Range:279-596 kw

Advance HCS600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.00-3.89 / 1.61-3.50
Trans.Capacity:0.40-0.48 kW/RPM
Power Range:400-1008 kW

Advance HCS1000 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:2.00-4.06 / 1.59-3.65
Trans.Capacity:0.65-0.735 kW/RPM
Power Range:390-1397 kW

Advance HCS1200 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:2.03-4.47 / 1.61-4.05
Trans.Capacity:0.650-0.93 kW/RPM
Power Range:390-1767 kW

Advance HCS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.03-4.00 / 1.63-3.64
Trans.Capacity:1.213 kW/RPM
Power Range:606.5-2001.5 kW

Advance HCS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:2.28-4.40 / 1.83-4.00
Trans.Capacity:1.26-1.48 kW/RPM
Power Range:756-2220 kW

Advance HCS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:1.54-4.47 / 1.24-4.05
Trans.Capacity:1.75-2.05 kW/RPM
Power Range:875-2870 kW

Advance HCTS800 Marine Gearbox

Input Speed Range:600~1800 r/min
Reduction Ratio:4.95-8.40 / 3.90-7.64
Trans.Capacity:0.480-0.625 kW/RPM
Power Range:288-1125 kW

Advance HCTS1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:4.06-9.55 / 3.25-8.72
Trans.Capacity:0.85-1.03 kW/RPM
Power Range:510-1854 kW

Advance HCTS1200 Marine Gearbox

Input Speed Range:700-1800 r/min
Reduction Ratio:5.05-7.90 / 4.07-6.19
Trans.Capacity:0.93 kW/RPM
Power Range:651-1674 kW

Advance HCTS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:5.55-9.53 / 4.40-8.73
Trans.Capacity:0.93-1.213 kW/RPM
Power Range:465-2001 kW

Advance HCTS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:5.19-11.0 / 4.12-10.0
Trans.Capacity:1.00-1.48 kW/RPM
Power Range:600-2220 kW

Advance HCTS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:4.92-10.05 / 3.91-9.13
Trans.Capacity:1.54-2.05 kW/RPM
Power Range:770-2870 kW

Advance HCDS302 Marine Gearbox

Input Speed Range:750-2500 r/min
Reduction Ratio:4.00-7.63 / 3.17-6.78
Trans.Capacity:0.13-0.257 kW/RPM
Power Range:97.5-642.5 kW

Advance HCDS400 Marine Gearbox

Input Speed Range:1000-1800 r/min
Reduction Ratio:3.96-5.89 / 3.14-5.30
Trans.Capacity:0.272-0.331 kW/RPM
Power Range:272-596 kW

Advance HCDS600 Marine Gearbox

Input Speed Range:1000-2100 r/min
Reduction Ratio:4.18-5.71 / 3.29-5.11
Trans.Capacity:0.40-0.48 kW/RPM
Power Range:400-1008 kW

Advance HCDS800 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:3.96-5.89 / 3.19-5.30
Trans.Capacity:0.515-0.625 kW/RPM
Power Range:309-1125 kW

Advance HCDS1200 Marine Gearbox

Input Speed Range:600-1900 r/min
Reduction Ratio:3.95-5.58 / 3.11-5.05
Trans.Capacity:0.93-0.65 kW/RPM
Power Range:390-1767 kW

Advance HCDS1400 Marine Gearbox

Input Speed Range:600-1800 r/min
Reduction Ratio:4.04-5.86 / 3.21-5.35
Trans.Capacity:0.778-1.03 kW/RPM
Power Range:467-1854 kW

Advance HCDS1600 Marine Gearbox

Input Speed Range:500-1650 r/min
Reduction Ratio:2.97-5.25 / 2.36-4.77
Trans.Capacity:1.164-1.213 kW/RPM
Power Range:582-2002 kW

Advance HCDS2000 Marine Gearbox

Input Speed Range:600-1500 r/min
Reduction Ratio:3.00-6.05 / 2.43-5.48
Trans.Capacity:1.19-1.48 kW/RPM
Power Range:714-2220 kW

Advance HCDS2700 Marine Gearbox

Input Speed Range:500-1400 r/min
Reduction Ratio:3.65-6.11 / 2.97-5.52
Trans.Capacity:1.7-2.05 kW/RPM
Power Range:850-2870 kW

Advance SGW30.32 Marine Gearbox

Input Speed Range:400-1300 r/min
Reduction Ratio:2.33-3.52 / 1.94-2.91
Trans.Capacity:0.61-1.109 kW/RPM
Power Range:244-1441 kW

Advance SGW32.35 Marine Gearbox

Input Speed Range:400-850 r/min
Reduction Ratio:1.92-2.17 / 1.62-1.81
Trans.Capacity:1.192-1.604 kW/RPM
Power Range:477-1363 kW

Advance SGW39.41 Marine Gearbox

Input Speed Range:400-1700 r/min
Reduction Ratio:4.16 / 3.57
Trans.Capacity:1.227-1.427 kW/RPM
Power Range:491-2426 kW

Advance SGW42.45 Marine Gearbox

Input Speed Range:400-1600 r/min
Reduction Ratio:5.6 / 5.00
Trans.Capacity:1.103-1.243 kW/RPM
Power Range:2433-7705 kW

Advance SGW49.54 Marine Gearbox

Input Speed Range:400-880 r/min
Reduction Ratio:3.39 / 2.92
Trans.Capacity:3.088-3.588 kW/RPM
Power Range:1235-3157 kW

Advance SGWS49.54 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:2.647 kW/RPM
Power Range:1058.8-3176.4 kW

Advance SGWS52.59 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:3.448 kW/RPM
Power Range:1379.2-4137.6 kW

Advance SGWS60.66 Marine Gearbox

Input Speed Range:400-1200 r/min
Reduction Ratio:2.00-3.95 / 1.61-3.59
Trans.Capacity:4.625 kW/RPM
Power Range:1850-5550 kW

Advance SGWS66.75 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.97-3.95 / 1.57-3.61
Trans.Capacity:6.99 kW/RPM
Power Range:2097-6640.5 kW

Advance SGWS70.76 Marine Gearbox

Input Speed Range:300-950 r/min
Reduction Ratio:1.94-3.95 / 1.57-3.59
Trans.Capacity:8.111 kW/RPM
Power Range:2433.3-7705.45 kW

Other Products

DT Series Electric Propulsion

Input Speed Range:750-1500 r/min
Reduction Ratio:1.46-6.06
Trans. Capacity:0.012-3.152kW/r/min
Power Range:9-1688 kW

 HCL Series Hydraulic Clutches

Input Speed Range:750-2500 r/min
Transmit Torque:0.3-10.0 KN.m
Trans.Capacity:0.031-1.047 kW/rpm
Power Range:23.25-2150 kW

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

Advance EDB240 Electric – Drive Box

Advance EDB240 Electric – Drive Box

Model : EDB240
Travel Motor Rated Power : 160 kW
Travel Motor Peak Torque : 1100 N·m
Travel Motor Peak Speed : 8000 rpm
Hydraulic Motor Rated Power : 100 kW
Hydraulic Motor Peak Torque : 320 N·m

Advance EXB168 / EXB178 Electric – Drive Box

Advance EXB168 / EXB178 Electric – Drive Box

Model : EXB168 / EXB178
Travel Motor Rated Power : 120 kW
Travel Motor Peak Torque : 1200 N·m
Travel Motor Peak Speed : 6000 rpm
Hydraulic Motor Rated Power : 60 kW
Hydraulic Motor Peak Torque : 350 N·m

Advance YJ450 Torque Converter

Advance YJ450 Torque Converter

Model : YJ450
Effective Diameter : 450 mm
Torque Converter Coefficient (Zero-Speed) : 2.13
Nominal Torque (Zero-Speed) : 715 N·m
Max Efficiency : 0.82
Output : Flanged, single

Advance YJ407 Hydraulic Torque Converter

Advance YJ407 Hydraulic Torque Converter

Model : YJ407
Effective Diameter : 407 mm
Torque Converter Coefficient (Zero – Speed) : 1.89
Nominal Torque (Zero – Speed) : 450.5 N·m
Max Efficiency : 0.84
Output : Flanged, single

Advance YJ315X Torque Converter

Advance YJ315X Torque Converter

Model : YJ315X
Effective Diameter : 315 mm
Torque Converter Coefficient (Zero-Speed) : 2.86
Nominal Torque (Zero-Speed) : 68.27 N·m
Max Efficiency : 0.812
Output : Flanged, single (with 3 PTO ports)

Advance YJ305 Hydraulic Torque Converter

Advance YJ305 Hydraulic Torque Converter

Model : YJ305
Effective Diameter : 305 mm
Torque Converter Coefficient (Zero-Speed) : 2.31
Nominal Torque (Zero-Speed) : 100 N·m
Max Efficiency : 0.86
Output : Flanged, single

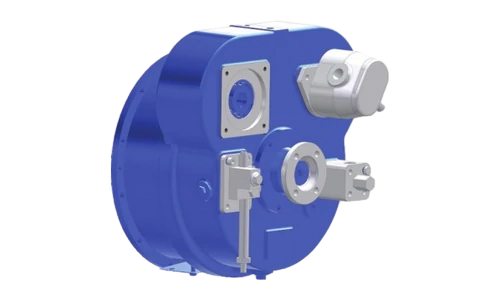

Advance YJ280 Torque Converter

Advance YJ280 Torque Converter

Model : YJ280
Effective Diameter : 280 mm
Torque Converter Coefficient (Zero-Speed) : 3.12
Nominal Torque (Zero-Speed) : 39 N · m
Max Efficiency : 0.836
Output : Flanged, single

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

Advance DB428 Hydraulic Gearbox

Advance DB428 Hydraulic Gearbox

Model : DB428
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance DB55 Hydraulic Gearbox

Advance DB55 Hydraulic Gearbox

Model : DB55
Max. power : 58 kW
Max. speed : 2400 r / min
Max. input : 670 N · m torque
Output type : Flange, Dual output

Advance YDH85 Hydraulic Gearbox

Advance YDH85 Hydraulic Gearbox

Model : YDH85
Max. power : 85 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance YDH130A Hydraulic Gearbox

Advance YDH130A Hydraulic Gearbox

Model : YDH130A / YDH130
Max. power : 130 kW
Max. speed : 2500 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance YB82 Hydraulic Gearbox

Advance YB82 Hydraulic Gearbox

Model : YB82
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 680 N · m torque
Output type : Flange, Dual output

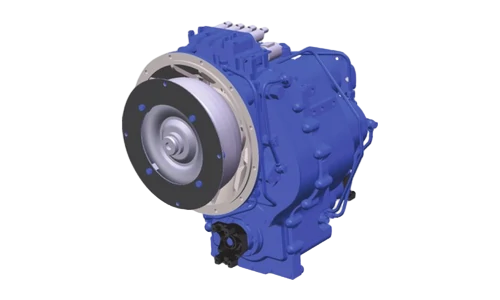

Advance YB85 Hydraulic Gearbox

Advance YB85 Hydraulic Gearbox

Model : AYB85
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 750 N · m torque
Output type : Flange, Dual output

Advance YB160 Hydraulic Gearbox

Advance YB160 Hydraulic Gearbox

Model : YB160
Max. power : 160 kW
Max. speed : 2500 r / min
Max. input : 1100 N · m torque
Output type : Flange, Dual output

Advance YB171 Hydraulic Gearbox

Advance YB171 Hydraulic Gearbox

Model : YB171
Max. power : 170 kW
Max. speed : 2600 r / min
Max. input : 1350 N · m torque
Output type : Flange, Dual output

Advance YB250 Hydraulic Gearbox

Advance YB250 Hydraulic Gearbox

Model : YB250
Max. power : 230 kW
Max. speed : 2200 r / min
Max. input : 2450 N · m torque
Output type : Flange, Dual output

Advance YB260 Hydraulic Gearbox

Advance YB260 Hydraulic Gearbox

Model : YB260
Max. power : 260 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance AYB300 Hydraulic Gearbox

Advance AYB300 Hydraulic Gearbox

Model : AYB300
Max. power : 300 kW
Max. speed : 2100 r / min
Max. input : 2900 N · m torque
Output type : Flange, Single output

Advance YB310 Hydraulic Gearbox

Advance YB310 Hydraulic Gearbox

Model : YB310
Max. power : 310 kW
Max. speed : 2500 r / min
Max. input : 2950 N · m torque
Output type : Flange, Dual output

Advance YB360 Hydraulic Gearbox

Advance YB360 Hydraulic Gearbox

Model : YB360
Max. power : 360 kW
Max. speed : 2500 r / min
Max. input : 3600 N · m torque
Output type : Flange, Dual output

Advance ZL50D Hydraulic Gearbox

Advance ZL50D Hydraulic Gearbox

Model : ZL50D
Max. power : 154 kW
Max. speed : 2200 r / min
Max. input : 2500 N · m torque
Output type : Flange, Dual output

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Advance HCF2300 Transfer Case

Advance HCF2300 Transfer Case

Model : HCF2300
Engine Rated Power : 350 kW
Engine Maximum Speed : 3450 r / min
Maximum Input Torque : 23000 N · m
Gear Ratio : 1
Torque – splitting Ratio : 1 : 1

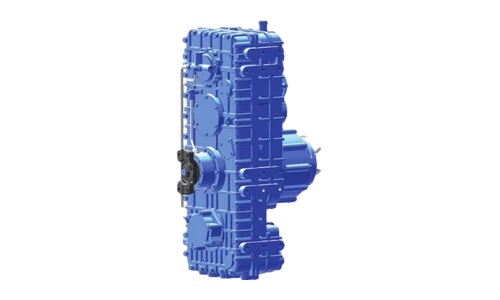

Advance HCF1580 Transfer Case

Advance HCF1580 Transfer Case

Model : HCF1580
Engine Rated Power : 390 kW
Engine Maximum Speed : 3450 r / min
Maximum Input Torque : 15800 N · m
Gear Ratios : 1.32 / 0.9
Torque – splitting Ratio : 1 : 2

Advance YJ450 Torque Converter

Advance YJ450 Torque Converter

Model : YJ450
Effective Diameter : 450 mm
Torque Converter Coefficient (Zero-Speed) : 2.13
Nominal Torque (Zero-Speed) : 715 N·m
Max Efficiency : 0.82
Output : Flanged, single

Advance YJ407 Hydraulic Torque Converter

Advance YJ407 Hydraulic Torque Converter

Model : YJ407
Effective Diameter : 407 mm
Torque Converter Coefficient (Zero – Speed) : 1.89
Nominal Torque (Zero – Speed) : 450.5 N·m
Max Efficiency : 0.84
Output : Flanged, single

Advance YJ315X Torque Converter

Advance YJ315X Torque Converter

Model : YJ315X
Effective Diameter : 315 mm
Torque Converter Coefficient (Zero-Speed) : 2.86
Nominal Torque (Zero-Speed) : 68.27 N·m
Max Efficiency : 0.812
Output : Flanged, single (with 3 PTO ports)

Advance YJ305 Hydraulic Torque Converter

Advance YJ305 Hydraulic Torque Converter

Model : YJ305
Effective Diameter : 305 mm
Torque Converter Coefficient (Zero-Speed) : 2.31
Nominal Torque (Zero-Speed) : 100 N·m
Max Efficiency : 0.86
Output : Flanged, single

Advance YJ280 Torque Converter

Advance YJ280 Torque Converter

Model : YJ280
Effective Diameter : 280 mm
Torque Converter Coefficient (Zero-Speed) : 3.12
Nominal Torque (Zero-Speed) : 39 N · m
Max Efficiency : 0.836
Output : Flanged, single

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

Advance EXB168 / EXB178 Electric – Drive Box

Advance EXB168 / EXB178 Electric – Drive Box

Model : EXB168 / EXB178
Travel Motor Rated Power : 120 kW
Travel Motor Peak Torque : 1200 N·m
Travel Motor Peak Speed : 6000 rpm
Hydraulic Motor Rated Power : 60 kW
Hydraulic Motor Peak Torque : 350 N·m

Advance EDB240 Electric – Drive Box

Advance EDB240 Electric – Drive Box

Model : EDB240
Travel Motor Rated Power : 160 kW
Travel Motor Peak Torque : 1100 N·m
Travel Motor Peak Speed : 8000 rpm
Hydraulic Motor Rated Power : 100 kW
Hydraulic Motor Peak Torque : 320 N·m

Advance XB100 Hydraulic Gearbox

Advance XB100 Hydraulic Gearbox

Model : XB100
Max. power : 110 kW
Max. input speed : 3500 r / min
Max. input torque : 770 N · m
Center distance : 185 mm
Input type : Hydraulic motor

Advance 2JY160 Hydrostatic Transmission

Advance 2JY160 Hydrostatic Transmission

Model : 2JY160
Small Motor Max. speed : 5000 r / min
Small Motor Max. input : 1200 N · m torque
Large Motor Max. input : 1600 N · m torque
Large Motor Max. speed : 5000 r / min
Output type : Flange

Advance YDH130A Hydraulic Gearbox

Advance YDH130A Hydraulic Gearbox

Model : YDH130A / YDH130
Max. power : 130 kW
Max. speed : 2500 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance YDH85 Hydraulic Gearbox

Advance YDH85 Hydraulic Gearbox

Model : YDH85
Max. power : 85 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance YB360 Hydraulic Gearbox

Advance YB360 Hydraulic Gearbox

Model : YB360
Max. power : 360 kW
Max. speed : 2500 r / min
Max. input : 3600 N · m torque
Output type : Flange, Dual output

Advance YH350 Hydraulic Gearbox

Advance YH350 Hydraulic Gearbox

Model : YH350
Max. power : 350 kW
Max. speed : 2300 r / min
Max. input : 3000 N · m torque
Output type : Flange, Dual output

Advance YB310 Hydraulic Gearbox

Advance YB310 Hydraulic Gearbox

Model : YB310
Max. power : 310 kW
Max. speed : 2500 r / min
Max. input : 2950 N · m torque
Output type : Flange, Dual output

Advance AYB300 Hydraulic Gearbox

Advance AYB300 Hydraulic Gearbox

Model : AYB300
Max. power : 300 kW
Max. speed : 2100 r / min
Max. input : 2900 N · m torque
Output type : Flange, Single output

Advance YB260 Hydraulic Gearbox

Advance YB260 Hydraulic Gearbox

Model : YB260
Max. power : 260 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance YB250 Hydraulic Gearbox

Advance YB250 Hydraulic Gearbox

Model : YB250
Max. power : 230 kW
Max. speed : 2200 r / min
Max. input : 2450 N · m torque
Output type : Flange, Dual output

Advance YB230 Hydraulic Gearbox

Advance YB230 Hydraulic Gearbox

Model : YB230
Max. power : 230 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance YB171 Hydraulic Gearbox

Advance YB171 Hydraulic Gearbox

Model : YB171
Max. power : 170 kW
Max. speed : 2600 r / min
Max. input : 1350 N · m torque
Output type : Flange, Dual output

Advance YB160 Hydraulic Gearbox

Advance YB160 Hydraulic Gearbox

Model : YB160
Max. power : 160 kW
Max. speed : 2500 r / min
Max. input : 1100 N · m torque
Output type : Flange, Dual output

Advance YB85 Hydraulic Gearbox

Advance YB85 Hydraulic Gearbox

Model : AYB85
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 750 N · m torque
Output type : Flange, Dual output

Advance YB82 Hydraulic Gearbox

Advance YB82 Hydraulic Gearbox

Model : YB82
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 680 N · m torque
Output type : Flange, Dual output

Advance ZL50D Hydraulic Gearbox

Advance ZL50D Hydraulic Gearbox

Model : ZL50D
Max. power : 154 kW
Max. speed : 2200 r / min
Max. input : 2500 N · m torque
Output type : Flange, Dual output

Advance DB428 Hydraulic Gearbox

Advance DB428 Hydraulic Gearbox

Model : DB428
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance BS428 Hydraulic Gearbox

Advance BS428 Hydraulic Gearbox

Model : BS428
Max. power : 74 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance DB55 Hydraulic Gearbox

Advance DB55 Hydraulic Gearbox

Model : DB55
Max. power : 58 kW
Max. speed : 2400 r / min
Max. input : 670 N · m torque
Output type : Flange, Dual output

Advance YD131 Hydraulic Gearbox

Advance YD131 Hydraulic Gearbox

Model : YD131
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance YD130 Hydraulic Gearbox

Advance YD130 Hydraulic Gearbox

Model : YD130
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

WhatsApp Online logo

Sales Team


Marine - SeaMacWhatApp-Icon

Marine Parts - PartMacWhatApp-Icon

EV System - EVMacWhatApp-Icon


Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee WhatApp-Icon

Shipping Service

Contact EMAC Now!

Subscribe To Our Newsletter

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.advance-gears.com

You have Successfully Subscribed!

Pin It on Pinterest
